Installation

Requirements

  1. 3D Slicer

    3D Slicer (Version 4.11.0 or later), Download here: https://download.slicer.org/

  2. DBS Guide Python Module

    Download the latest version of DBS Guide.

    Unzip the folder and save it somewhere on your system. For this tutorial, the file has been saved in Desktop.

Loading DBS Guide into Slicer

Steps Overview

Modules Drop Down Menu (Found in top menu bar)
Developer Tools -> Extension Wizard
Select Extension -> Open DBS Guide-master folder

1. Open Slicer

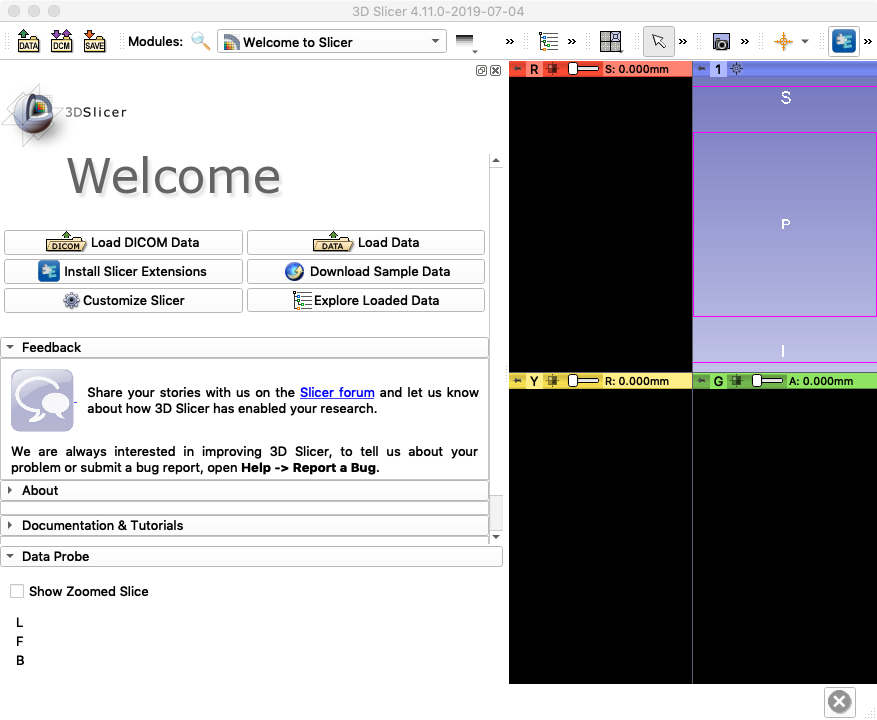

It should look like this (if you have/don’t have a Python Interactor at the bottom, that is fine)

_images/Slicer-Welcome.png

2. Load DBS Module

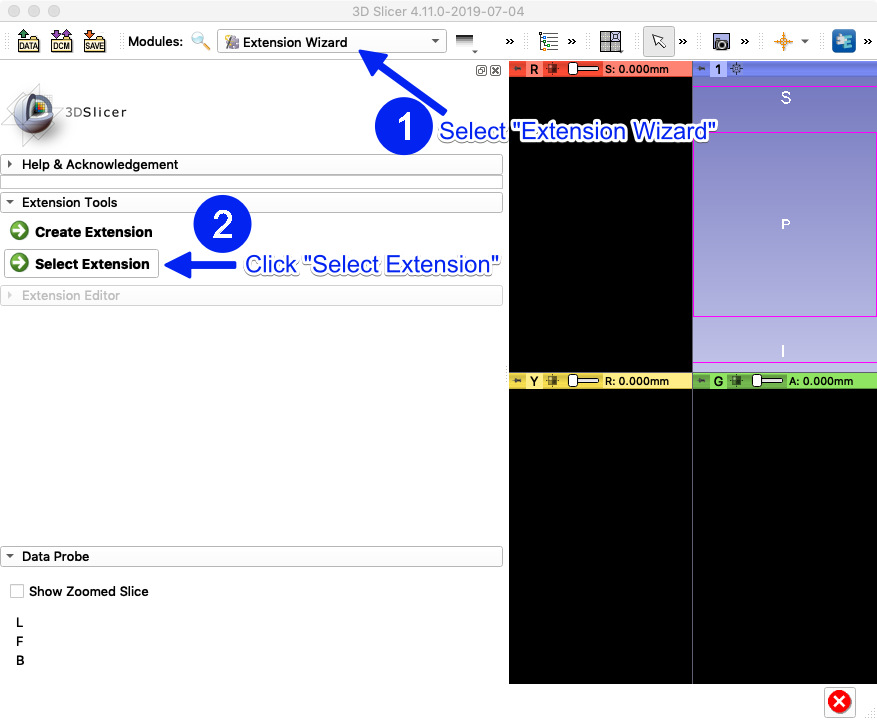

On the top menu bar next to “Modules”, select the drop down menu and go to “Developer Tools”, then select “Extension Wizard.” Under Extension Tools, press “Select Extension.”

_images/ExtWizard.png

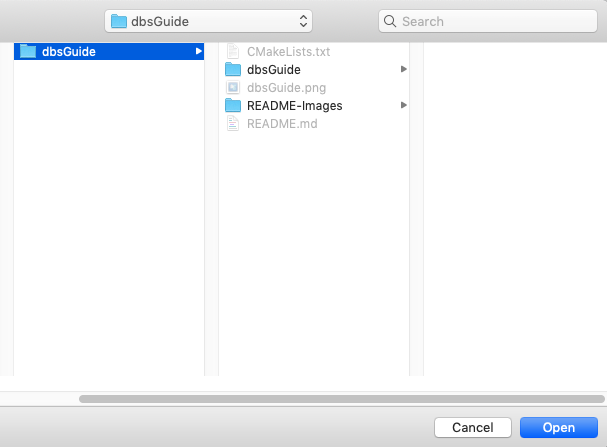

Select the DBS Guide-master folder and open it

_images/Module-Open.png

3. Pop-up Window

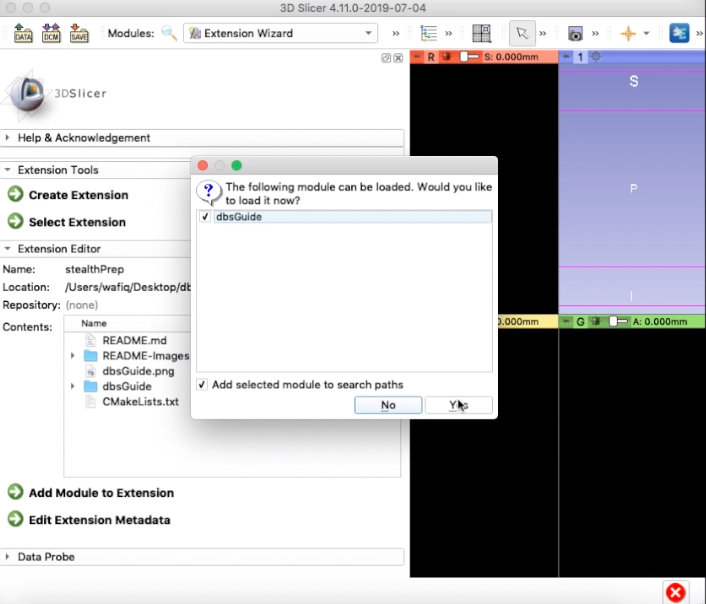

A window will pop up. Make sure both options are selected and press yes.

_images/Module-Path-Confirm.png

The DBS Guide module is now apart of Slicer.

4. Open DBS Guide in Slicer

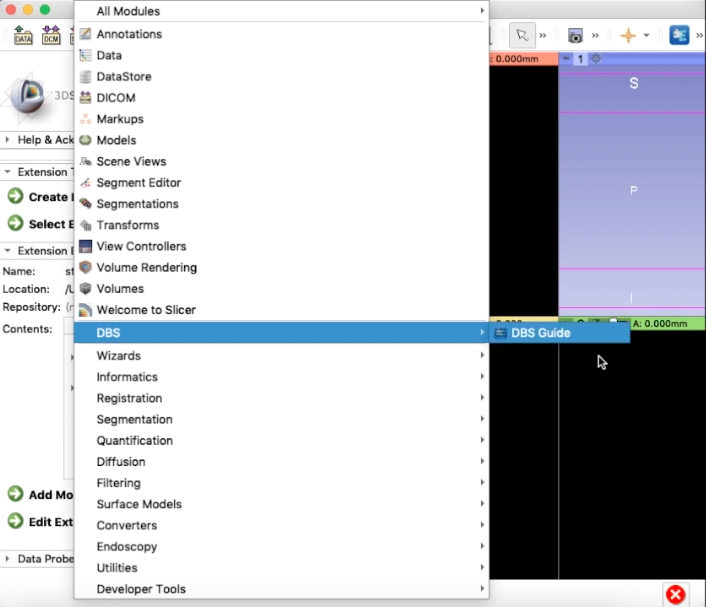

To open it, go to the modules drop down menu and select DBS -> DBS Guide

_images/selectDBS.png

You have now successfully loaded DBS Guide into Slicer. Your screen should look like this:

_images/DBSLaunch.png

5. Reopening Slicer/DBS Guide

The next time you open Slicer, you don’t have to go through the Extension Wizard. DBS Guide will be included in Slicer’s modules. You may open DBS Guide straight from the Modules drop down menu (all you have to do is step 4 next time)
